INTRODUCTION
Bar Bending Schedule is a summary of the reinforcement in a tabular formm which includes the following information. Bar bending schedules are very important out of detailing and should give the following information:Identification of the structural
member(s),
- Position of the bars in the
structure,
- The bar mark,
- The diameter or size of bar,
- The number of bars of one type in
each structural member,
- The total number of bars of each
type,
- The total straight length of the
bar,
- The shape and bending dimensions
of the bar,
- The details of bar chairs can also
be included,
- Remarks, if any.
The Various Standard Size of round steel Bars along with Their weight are Shown in Table.
Diameter of Bars
Weight of Bar(kg/m)
6
0.22
8
0.39
10
0.62
12
0.89
14
1.2
16
1.58
18
2
20
2.47
22
2.98
25
3.85
28
4.84
32
6.32
36
8
40
9.87
Measurementof Bending Dimensions of Bars For R.C.C.

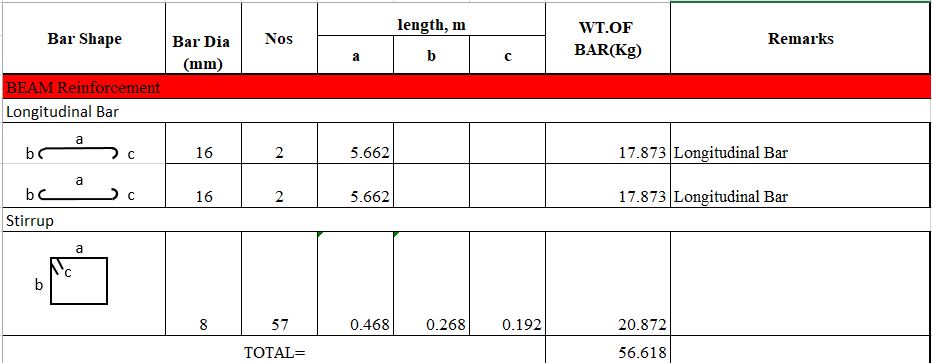

SAMPLE OF BBS
Numerical Examples :
BEAM
CALCULATION Longitudinal bar:L= total length-clear cover+hook =6000-2*25+9*16*2 =5662mmStirrup: =2a+2b+Hook a=depth-clear cover -Dia of bar b=width-clear cover -Dia of bar a=300-2*25-2*8 =234mm
Identification of the structural member(s),
- Position of the bars in the structure,
- The bar mark,
- The diameter or size of bar,
- The number of bars of one type in each structural member,
- The total number of bars of each type,
- The total straight length of the bar,
- The shape and bending dimensions of the bar,
- The details of bar chairs can also be included,
- Remarks, if any.
|
Diameter of Bars |
Weight of Bar(kg/m) |
|
6 |
0.22 |
|
8 |
0.39 |
|
10 |
0.62 |
|
12 |
0.89 |
|
14 |
1.2 |
|
16 |
1.58 |
|
18 |
2 |
|
20 |
2.47 |
|
22 |
2.98 |
|
25 |
3.85 |
|
28 |
4.84 |
|
32 |
6.32 |
|
36 |
8 |
|
40 |
9.87 |
b=200-2*25-2*8 =134mmhook= 2*12*8 =192mmNo of Stirrup= (distance/spacing )+1 =(5600/100)+1 =57 No
b=200-2*25-2*8
=134mm
hook= 2*12*8
=192mm
No of Stirrup= (distance/spacing )+1
=(5600/100)+1
=57 No
Reference:- is.sp.34.1987 Handbook on Concrete Reinforcement and Detailing
- is.sp.34.1987 Handbook on Concrete Reinforcement and Detailing
- is.2502.1963Code of Practice for Bending and Fixing of Bars for Concrete Reinforcement
- is.2502.1963Code of Practice for Bending and Fixing of Bars for Concrete Reinforcement
